Move a medical device component from an early form study to a production-representative part through one coordinated manufacturing workflow.
Medical device manufacturing requirements change with the part, quantity and program stage. One order may prioritize rapid geometry evaluation, while another requires final material, controlled mating features, a specified surface finish and documented inspection. Lab Ready coordinates machining, additive manufacturing, molding, finishing and optional fit checks around the actual drawing and acceptance requirements. Orthopedic engineering teams, medical-device companies and machine shops can use the same workflow for one-off parts, small-scale production or overflow manufacturing support.
These CAD-style renders show the range of geometry a medical device manufacturing review may need to address. They are design examples, not photographs of finished orders or evidence of a specified material or process.
A representative acetabular cup screw render showing thread form, head profile, and drive geometry that can be reviewed before manufacturing.
A representative hip head trial render illustrating spherical form, size identification, and mating geometry for design review.
A representative hip rasp render highlighting the tapered profile, tooth pattern, and instrument interface that influence process planning.

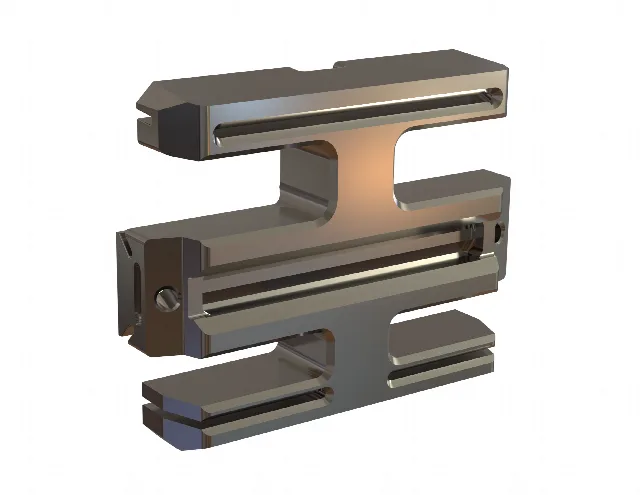

A representative knee 4-in-1 cut block render showing guide-slot geometry, open features, and mounting interfaces for manufacturing review.

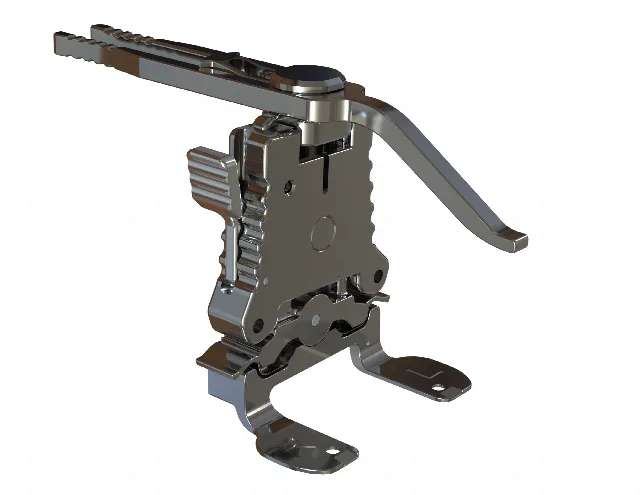

A representative knee femoral sizer render illustrating adjustment features, contact points, and assembled instrument geometry.
A representative Torx driver render showing drive-tip detail, shaft reach, connection geometry, and identification bands.
Process selection should follow the drawing, application, material, critical features and the condition in which the part needs to arrive.
Use SLA for high-detail form studies, SLS for functional nylon parts, metal additive for complex alloy geometry, or CNC machining when tolerance, material condition and surface control lead the decision.
Quantity, material, critical tolerances, finish, inspection needs and mating-component requirements are reviewed together rather than treated as unrelated quote lines.
Secondary finishing, optional fit testing and assembly checks can be coordinated before shipment so the delivered part is ready for the next lab activity.
Use these pages to connect the process with the device category, material and next project decision.
Yes. There is no minimum order quantity, so a single validation or development part is a normal request.
Send CAD or a drawing, quantity, preferred material, finish, critical tolerances, inspection or fit-check needs and the target delivery date.
Yes. Early revisions may use fast plastic additive processes, while later revisions move to production-representative alloys, machining, finishing or molding.
They are representative 3D CAD renders of orthopedic components and instruments. They illustrate the kinds of geometry reviewed during manufacturing planning, but they are not photographs of finished production orders or proof of a specific material, tolerance or manufacturing process.
Send the CAD, quantity, material, finish and target date for a process review and quote.
